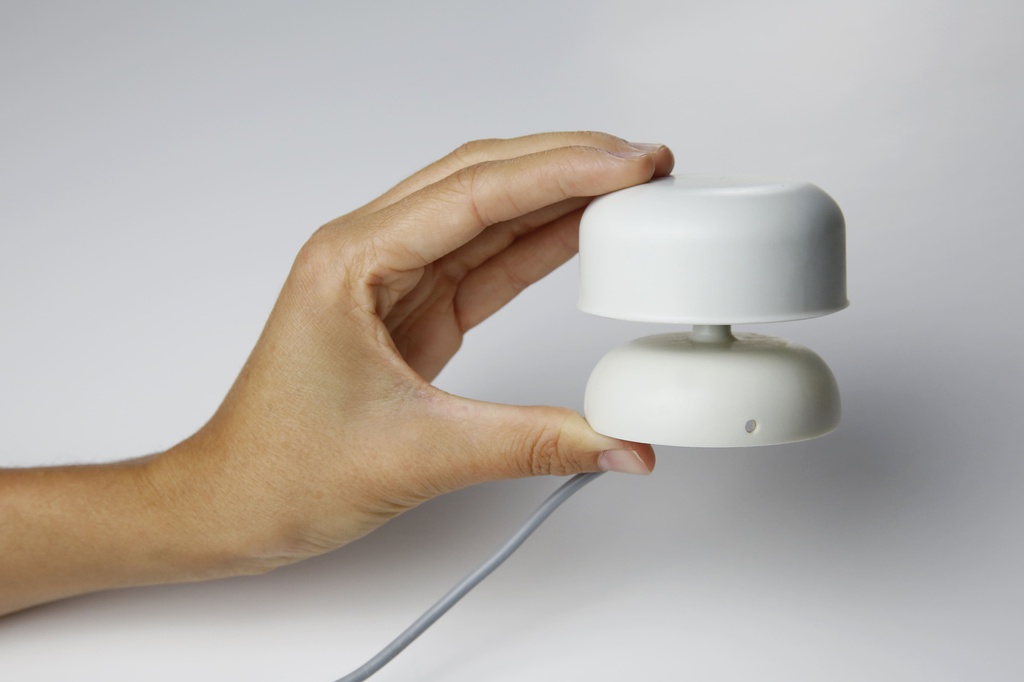

Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Wind meter, a 45m/s IoT, Ultra-Low-Power Ultrasonic wind meter PRO (ULP PRO).
Ultra-Low-Power (RS485 NMEA 0183: 0,25 mA @5V, 1Hz / MODBUS : 1 mA @5V, 1Hz)
Ultra-Low-Power (UART): 0,15 mA @5V, 1Hz
Small: 68 mm (2.68 in.) diameter.
Light: 200 grams (7.05 oz.)
The ULP PRO represents an important technology breakthrough condensing an extensive R+D investment that brings us to a new generation of ultrasonic wind meters.
-
Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.
-
Mechanical design has been revamped making the unit more robust and dependable.
-
We feel very proud to release a unit that requires under 0,25mA @1Hz (RS485), and 0,15mA @1Hz (UART).
(Further protocols under request).
485 MODBUS
The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.
NMEA 2000 output
The Ultra Low Power- Ultrasonic wind meter PRO wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_W2000 model.
Applications:
- Agriculture: Precision Agriculture/ Spraying/ Fertilicers and Irrigation
- Energy & Industry : Solar / Wind Power / Cranes /Elevators / Gas, oil & Industrial Plants
- Infrastructures & construction: Tunnels, Roads & Bridges/ Buildings & Temporary Constructions
- Marine: Fishing & Comercial/ Sailing, yacthing and watersports/ Marinas and Harbours
- Scientific & Meteorology: Research/ Metereological monitoring/ Air Quality and environmental/ Smart Cities
Add an NMEA Connect Plus :
