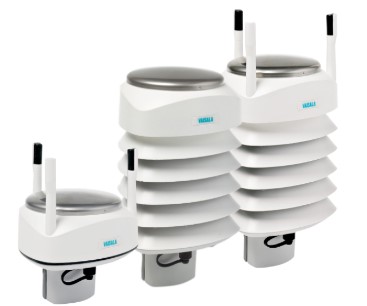

The WXT530 series uses an ultrasonic wind
measurement principle with no moving parts to
ensure reliable performance with no wear and
minimal maintenance requirements.
Barometric pressure, temperature, and humidity
measurements are combined in the PTU module
using capacitive measurement for each parameter.
This module is easy to change without any contact
with the sensors.

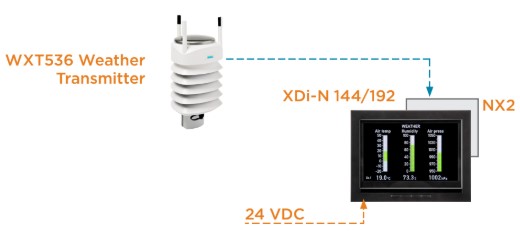

The WXT530 has a built-in heating element to
prevent icing. The transmitter can be connected
directly to a control system while simultaneously
sending data to an XDi-N wind/weather display
located on the bridge.

Features
Wind speed and direction; pressure, temperature, and
relative humidity
Different combinations of parameters available
Intelligent heating system to prevent icing
Operating temperature -52 ... +60 °C
Proven, robust technology
NMEA protocol
Advanced system integration with XDi-N
Plug-and-play upgrade for WXT520/WMT52
IEC 60945:2002 compliant
DNV GL and Russian Maritime Register of Shipping (RS)
type certifications
